Products
ATV

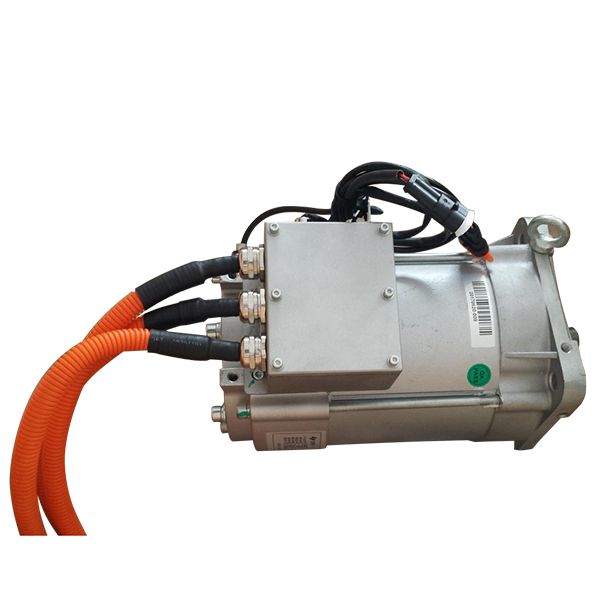

  • MT001-5KW

    AC induction motor,

    Rated power: 5KW

    Max power: 10KW

    Support vol.: 48V/60V/72V

    Rated speed: 3000rpm

    Max speed: 6800rpm

    Rated current: 130A

    Waterproof: IP66

    Ambient temperature: -15 degrees to 55 degrees

    Cooling method: wind natural cooling

    Connection mode: 18teeth with 140*140mm square flange

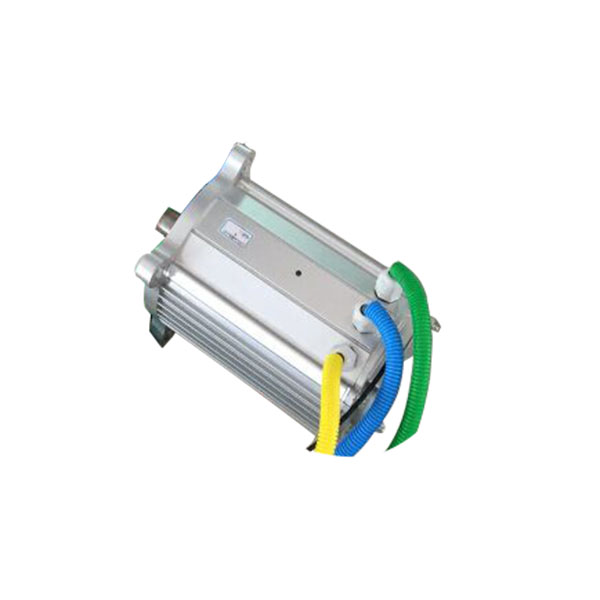

  • MT001-3KW

    AC induction motor,

    Rated power: 3KW

    Max power: 6KW

    Support vol.: 48V/60V

    Rated speed: 3000rpm

    Max speed: 6800rpm

    Rated current: 85A

    Waterproof: IP66

    Ambient temperature: -15 degrees to 55 degrees

    Cooling method: wind natural cooling

    Connection mode: 18teeth with 140*140mm square flange

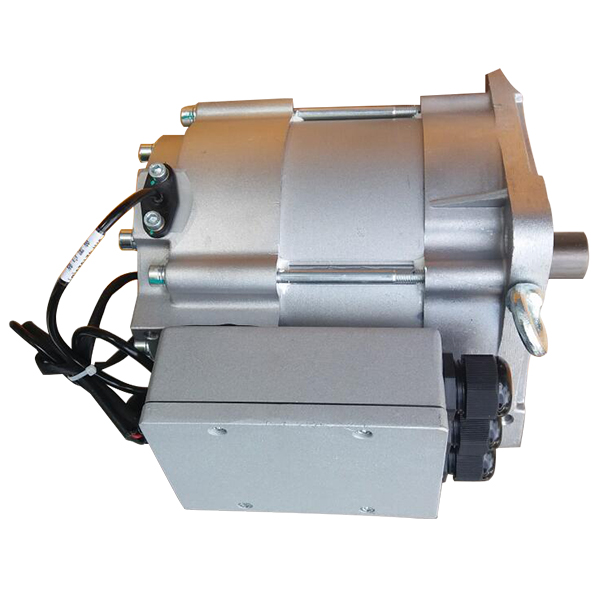

  • MT002-4KW

    DC synchronous motor,

    Rated power: 4KW

    Max power: 8KW

    Support vol.: 48V/60V

    Rated speed: 3000rpm

    Max speed: 6500rpm

    Rated current: 90A

    Waterproof: IP66

    Ambient temperature: -15 degrees to 55 degrees

    Cooling method: wind natural cooling

    Connection mode: 18teeth with 140*140mm square flange


Home Previous 1 2 3 Next Last
