Products

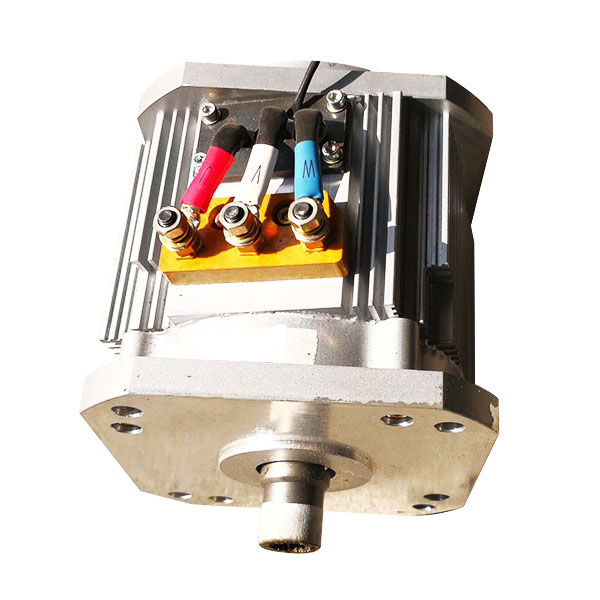

  • MT003-5KW

    AC induction motor,

    Rated power: 5KW

    Max power: 10KW

    Support vol.: 48V/60V/72V

    Rated speed: 3000rpm

    Max speed: 6800rpm

    Rated current: 130A

    Waterproof: IP54

    Ambient temperature: -15 degrees to 55 degrees

    Cooling method: wind natural cooling

    Connection mode: 18teeth with 140*140mm square flange

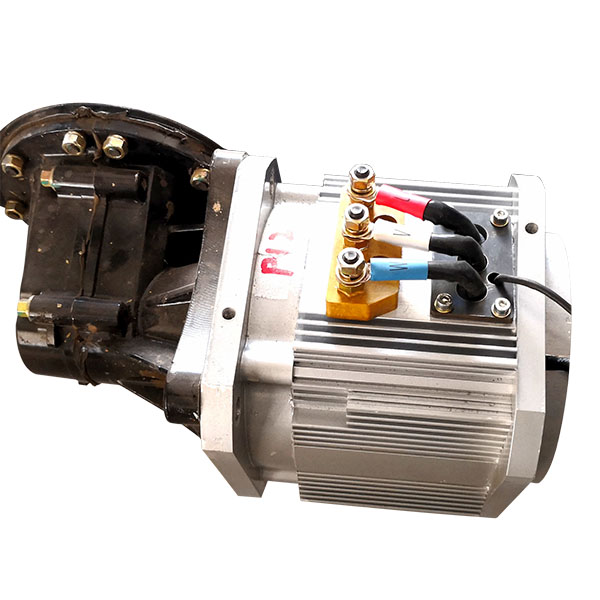

  • MT004-5KW

    BLDC new Synchronous 4-5KW motor

    Rated power: 4-5KW

    Max power: 8-10KW

    Support vol.: 48V/60V/72V

    Rated speed: 3000rpm

    Max speed: 6500rpm

    Rated current: 110A

    Waterproof: IP66

    Ambient temperature: -15 degrees to 55 degrees

    Cooling method: wind natural cooling

    Connection mode: 18teeth with 140*140mm square flange

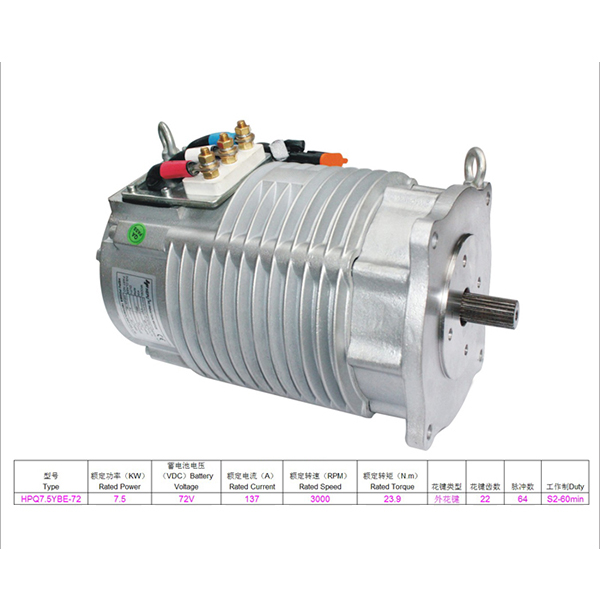

  • AC induction motor

    Rated power: 7.5KW

    Max power: 15KW

    Support vol.: 48V/60V/72V

    Rated speed: 3000rpm

    Max speed: 6800rpm

    Rated current: 150A

    Waterproof: IP66

    Ambient temperature: -15 degrees to 55 degrees

    Cooling method: wind natural cooling

    Connection mode: 18teeth internal spline with 140*140mm

    square flange or 24teeth internal spline with 180mm round flange
